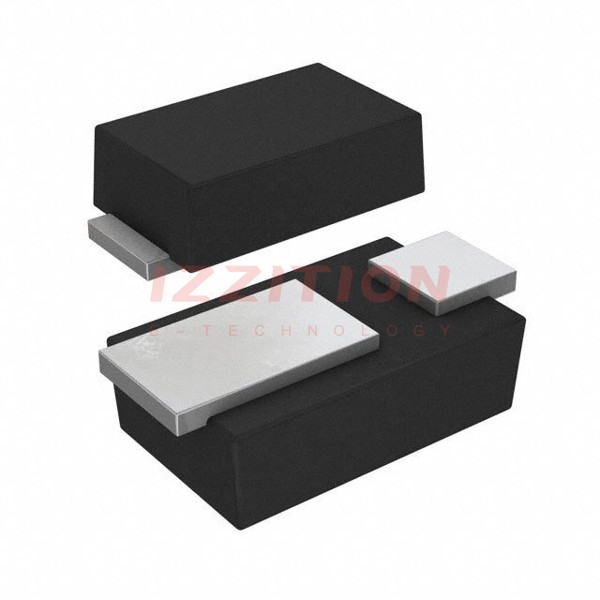

| Part Number | SS13HE | SS14HE | SS13H |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 40 V | 30 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A | 550 mV @ 1 A | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5.6 ns | 5.6 ns | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V | 50 µA @ 40 V | 200 µA @ 30 V |
| Capacitance @ Vr, F | 55pF @ 4V, 1MHz | 55pF @ 4V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | DO-214AC, SMA |
| Supplier Device Package | SOD-323HE | SOD-323HE | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C |
