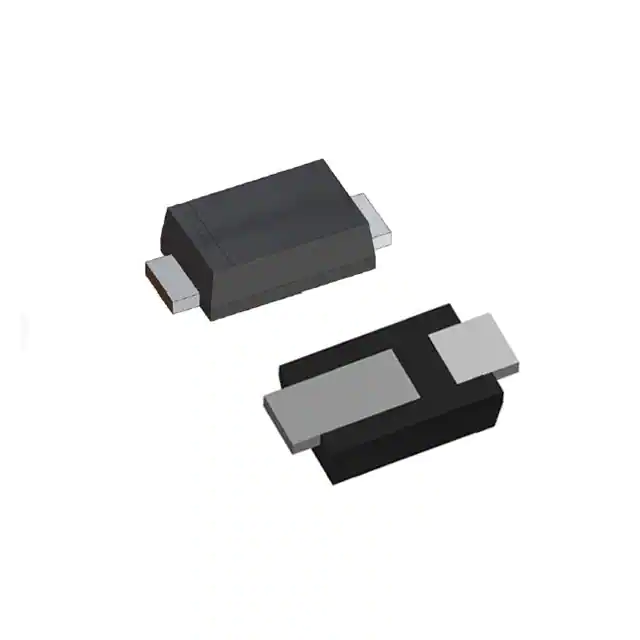

| Part Number | SS13FP | SS14FP | SS13FL |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 40 V | 30 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A | 550 mV @ 1 A | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | 6 ns | 5.875 ns |
| Current - Reverse Leakage @ Vr | 400 µA @ 30 V | 400 µA @ 40 V | 30 µA @ 30 V |
| Capacitance @ Vr, F | 80pF @ 4V, 1MHz | 54pF @ 4V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123H | SOD-123H | SOD-123F |
| Supplier Device Package | SOD-123HE | SOD-123HE | SOD-123F |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C |
