onsemi-SS0503EC-TR-H - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	500mA
Voltage - Forward (Vf) (Max) @ If:	560 mV @ 500 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	10 ns
Current - Reverse Leakage @ Vr:	100 µA @ 15 V
Capacitance @ Vr, F:	6pF @ 10V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	2-UDFN
Supplier Device Package:	2-ECSP1008
Operating Temperature - Junction:	-55°C ~ 125°C

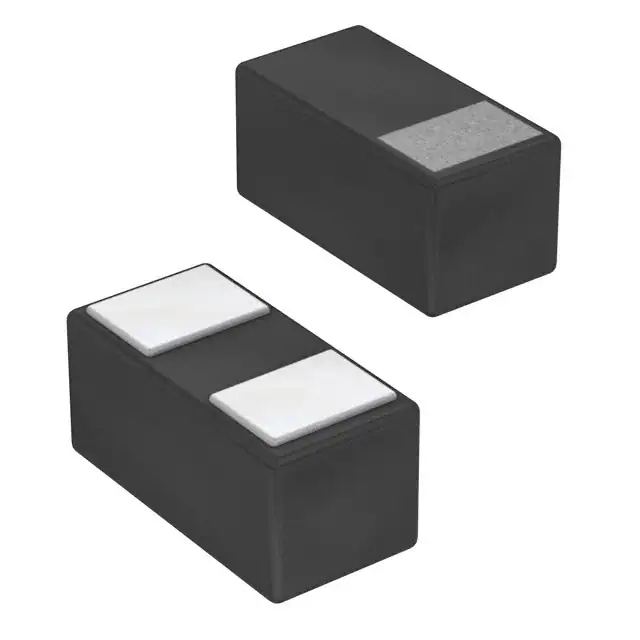

onsemi SS0503EC-TR-H
