onsemi-SRVUD620CTT4G - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io) (per Diode):	3A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 3 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Operating Temperature - Junction:	-65°C ~ 175°C
Mounting Type:	Surface Mount

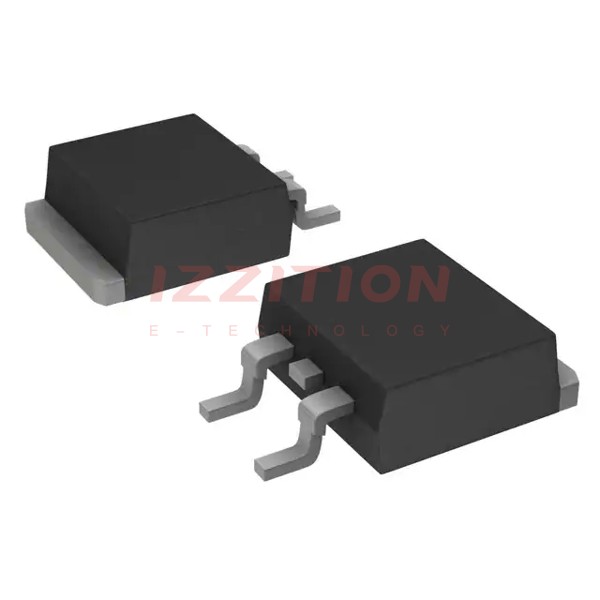

Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	DPAK

onsemi SRVUD620CTT4G
