onsemi-SNSR20F20NXT5G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	2A (DC)
Voltage - Forward (Vf) (Max) @ If:	470 mV @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	150 µA @ 20 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	2-DSN (1.6x0.8), (0603)
Operating Temperature - Junction:	150°C (Max)

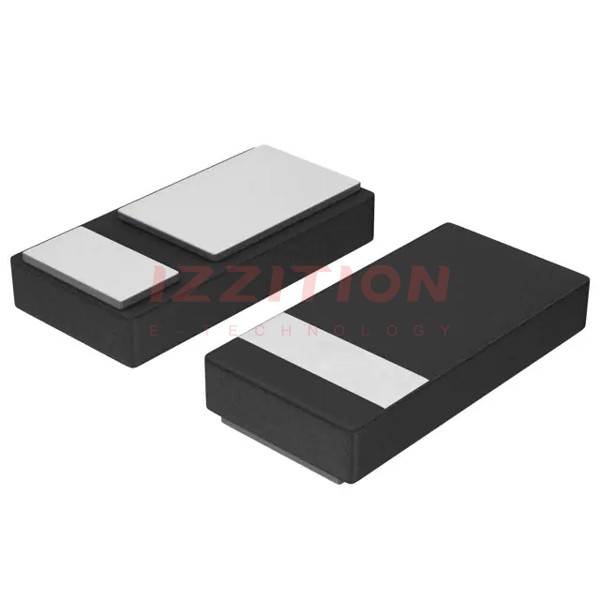

onsemi SNSR20F20NXT5G
