Please send RFQ , we will respond immediately.

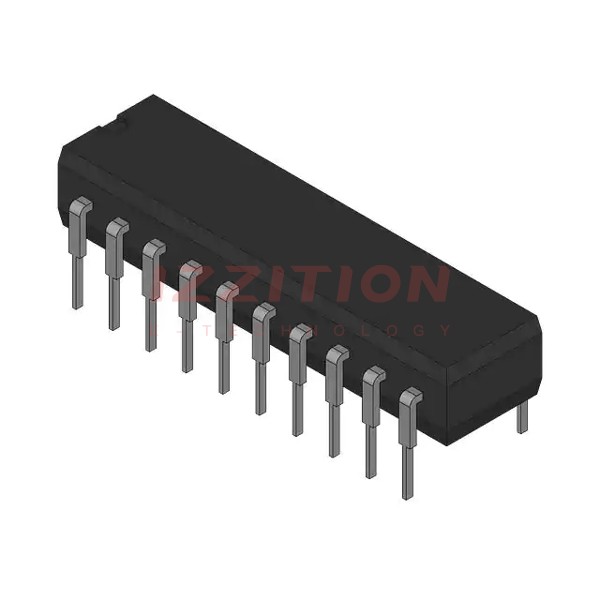

| Part Number | SN74LS684N | SN74LS688N | SN74LS685N | SN74LS684NS | SN74LS682N |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Active | Active |
| Type | Magnitude Comparator | Identity Comparator | - | - | Magnitude Comparator |
| Number of Bits | 8 | 8 | - | - | 8 |
| Output | Active Low | Active Low | - | - | Active Low |
| Output Function | A=B, A>B | A=B | - | - | A=B, A>B |
| Voltage - Supply | 4.85V ~ 5.25V | 4.85V ~ 5.25V | - | - | 4.85V ~ 5.25V |
| Current - Output High, Low | 400µA, 24mA | 400µA, 24mA | - | - | 400µA, 24mA |
| Max Propagation Delay @ V, Max CL | 30ns @ 5V, 45pF | 23ns @ 5V, 45pF | - | - | 30ns @ 5V, 45pF |
| Current - Quiescent (Iq) | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | - | - | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | - | - | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-PDIP | - | - | 20-PDIP |
| Mounting Type | Through Hole | Through Hole | - | - | Through Hole |
