Please send RFQ , we will respond immediately.

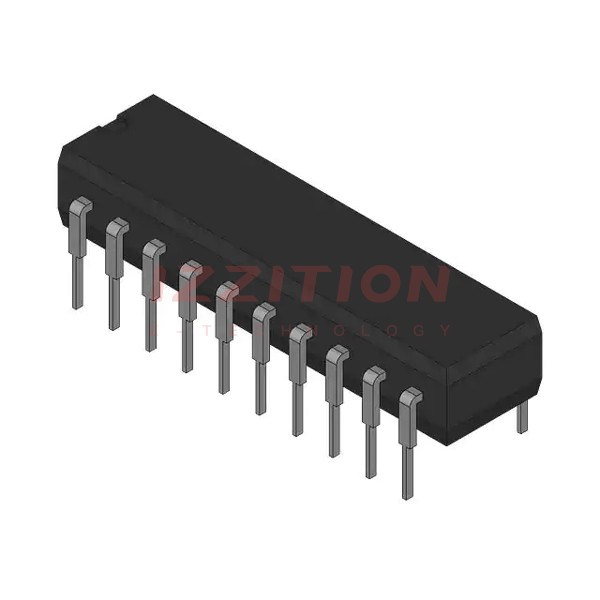

| Part Number | SN74LS641N | SN74LS645N | SN74LS642N | SN74LS541N | SN74LS640N | SN74LS641H |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | onsemi |
| Product Status | Obsolete | Active | Active | Active | Active | Active |
| Logic Type | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Inverting | Buffer, Non-Inverting | Transceiver, Inverting | - |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | - |
| Number of Bits per Element | 8 | 8 | 8 | 8 | 8 | - |
| Input Type | - | - | - | - | - | - |
| Output Type | Open Collector | 3-State | Open Collector | 3-State | 3-State | - |
| Current - Output High, Low | -, 24mA | 15mA, 24mA | -, 24mA | 15mA, 24mA | 15mA, 24mA | - |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 20-PDIP | 20-PDIP | 20-PDIP | 20-PDIP | 20-PDIP | - |
