Please send RFQ , we will respond immediately.

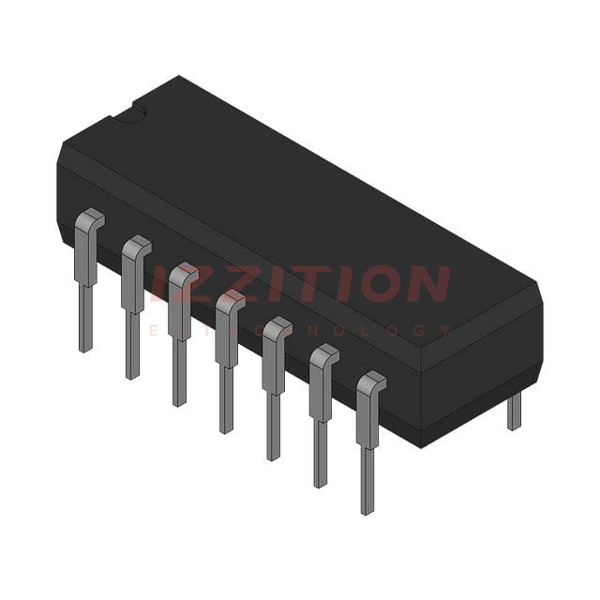

| Part Number | SN74LS126AN | SN74LS126ANS | SN74LS125AN | SN74LS126AD | SN74LS126AM |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Texas Instruments | Texas Instruments | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Logic Type | Buffer, Non-Inverting | Buffer, Non-Inverting | Buffer, Non-Inverting | Buffer, Non-Inverting | - |
| Number of Elements | 4 | 4 | 4 | 4 | - |
| Number of Bits per Element | 1 | 1 | 1 | 1 | - |
| Input Type | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | - |
| Current - Output High, Low | 2.6mA, 24mA | 5.2mA, 16mA | 2.6mA, 24mA | 2.6mA, 24mA | - |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount | - |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.209", 5.30mm Width) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) | - |
| Supplier Device Package | 14-PDIP | 14-SO | 14-PDIP | 14-SOIC | - |
