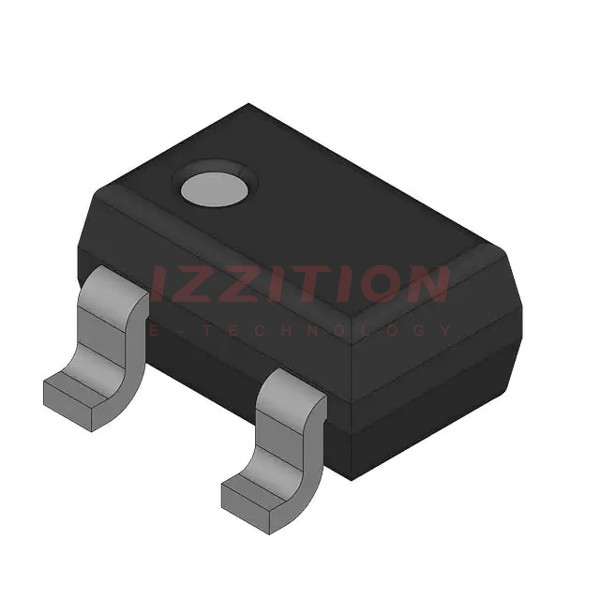

| Part Number | SMMBTA06WT3G | SMMBTA56WT3G | SMMBTA06LT3G | SMMBTA06WT1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Transistor Type | NPN | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 80 V | 80 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA | 250mV @ 10mA, 100mA | 250mV @ 10mA, 100mA | 250mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 1V | 100 @ 100mA, 1V | 100 @ 100mA, 1V | 100 @ 100mA, 1V |
| Power - Max | 150 mW | 150 mW | 225 mW | 150 mW |
| Frequency - Transition | 100MHz | 50MHz | 100MHz | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SOT-23-3 (TO-236) | SC-70-3 (SOT323) |
