onsemi-SMBJ13A100 - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	13V
Voltage - Breakdown (Min):	14.4V
Voltage - Clamping (Max) @ Ipp:	21.5V
Current - Peak Pulse (10/1000µs):	27.9A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB
Supplier Device Package:	DO-214AA (SMB)

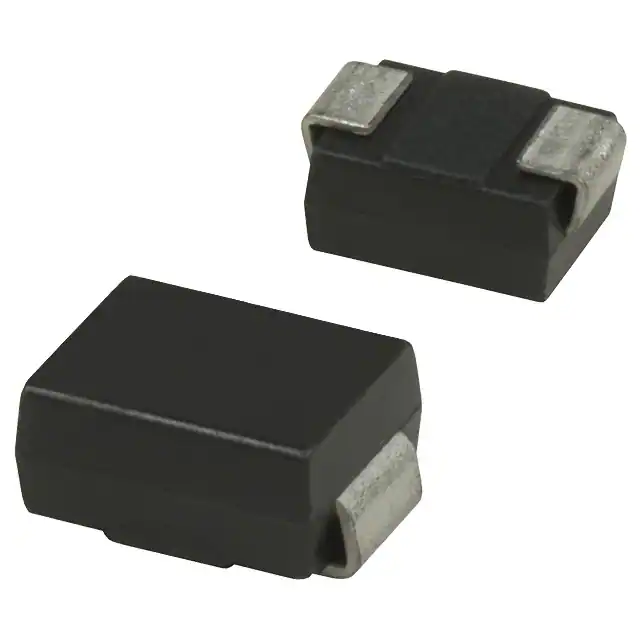

onsemi SMBJ13A100
