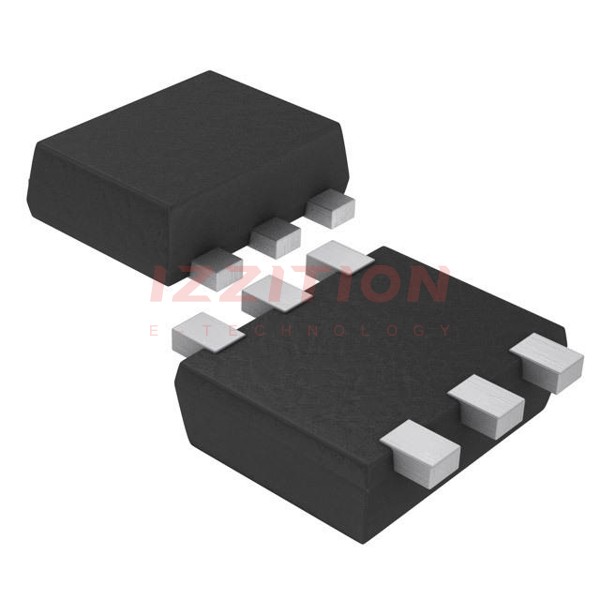

| Part Number | SMA3103-TL-E | SMA3109-TL-E | SMA3107-TL-E | SMA3101-TL-E |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete |
| Frequency | 0Hz ~ 2.2GHz | 0Hz ~ 2.2GHz | 0Hz ~ 2.8GHz | 100MHz ~ 3GHz |
| P1dB | 5.7dBm | 4.2dBm | -9.5dBm | -4dBm |
| Gain | 27dB | 24dB | 24.5dB | 25.5dB |
| Noise Figure | 4.7dB | 4.3dB | 3.6dB | 4dB |
| RF Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Voltage - Supply | 4.5V ~ 5.5V | 2.7V ~ 3.3V | 2.7V ~ 3.3V | 4.5V ~ 5.5V |
| Current - Supply | 19mA | 16mA | 6mA | 10mA |
| Test Frequency | 2.2GHz | 2.2GHz | 2.2GHz | 2.2GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH | 6-MCPH | 6-MCPH | 6-MCPH |
