onsemi-SLAS5223MNR2G - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	300mOhm
Channel-to-Channel Matching (ΔRon):	50mOhm
Voltage - Supply, Single (V+):	1.65V ~ 3.6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	50ns, 30ns
-3db Bandwidth:	17MHz
Charge Injection:	38pC
Channel Capacitance (CS(off), CD(off)):	3.5pF
Current - Leakage (IS(off)) (Max):	10nA
Crosstalk:	-70dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-WFQFN
Supplier Device Package:	10-WQFN (1.4x1.8)

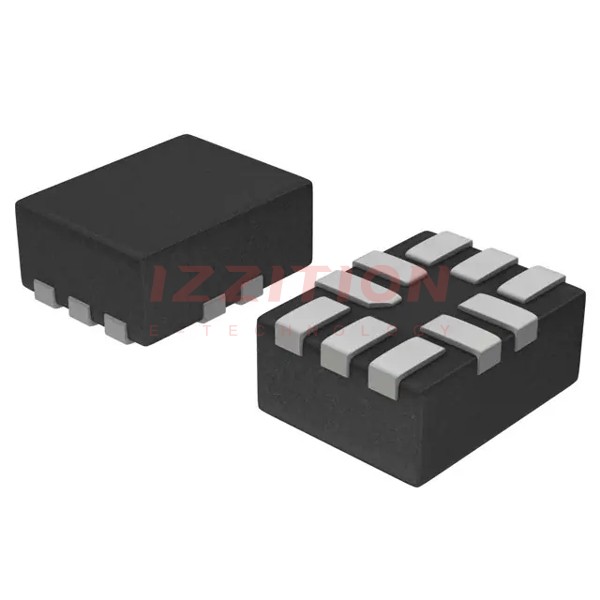

onsemi SLAS5223MNR2G
