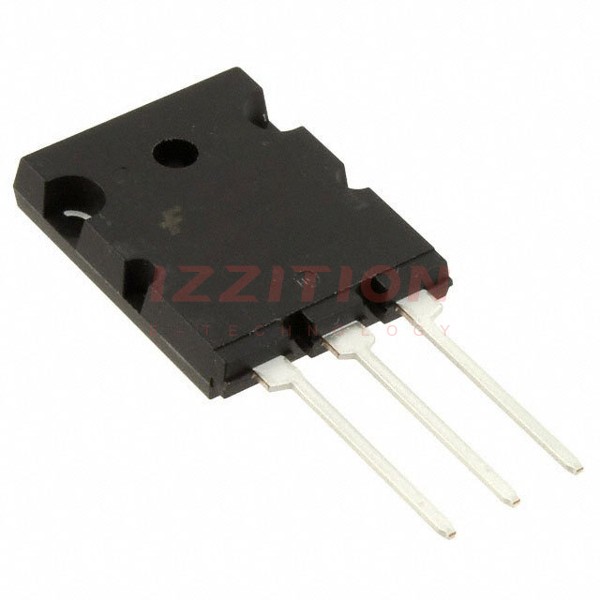

| Part Number | SGL50N60RUFTU | SGL50N60RUFDTU |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A |
| Current - Collector Pulsed (Icm) | 150 A | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 50A | 2.8V @ 15V, 50A |
| Power - Max | 250 W | 250 W |
| Switching Energy | 1.68mJ (on), 1.03mJ (off) | 1.68mJ (on), 1.03mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 145 nC | 145 nC |
| Td (on/off) @ 25°C | 26ns/66ns | 26ns/66ns |
| Test Condition | 300V, 50A, 5.9Ohm, 15V | 300V, 50A, 5.9Ohm, 15V |
| Reverse Recovery Time (trr) | - | 100 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264-3 | HPM F2 |
