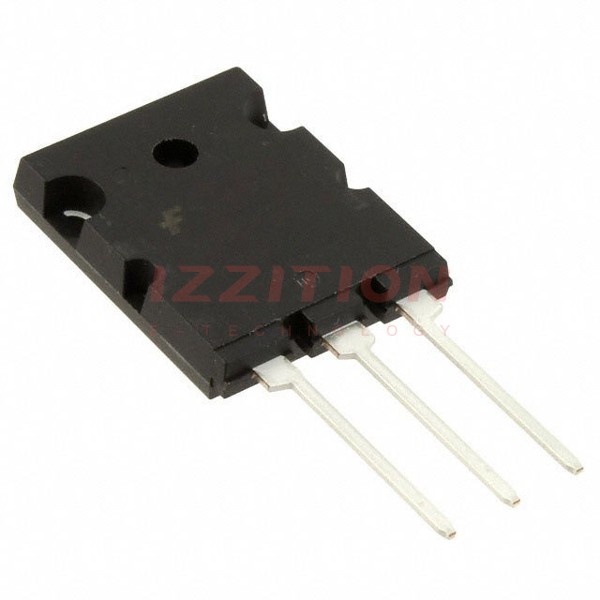

| Part Number | SGL160N60UFTU | SGL160N60UFDTU |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Last Time Buy |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 160 A | 160 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 80A | 2.6V @ 15V, 80A |
| Power - Max | 250 W | 250 W |
| Switching Energy | 2.5mJ (on), 1.76mJ (off) | 2.5mJ (on), 1.76mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 345 nC | 345 nC |
| Td (on/off) @ 25°C | 40ns/90ns | 40ns/90ns |
| Test Condition | 300V, 80A, 3.9Ohm, 15V | 300V, 80A, 3.9Ohm, 15V |
| Reverse Recovery Time (trr) | - | 95 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264-3 | TO-264-3 |
