SGH80N60UFTU
  • Share:

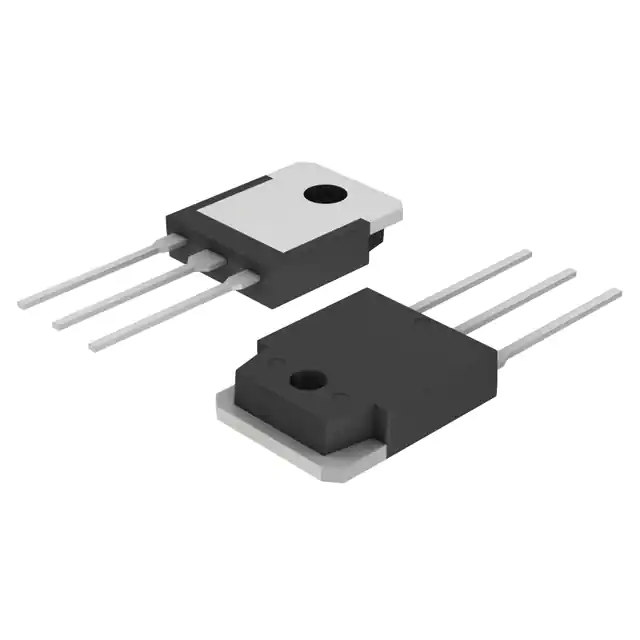

onsemi SGH80N60UFTU

Manufacturer No:
SGH80N60UFTU
Manufacturer:
onsemi
Package:
Tube
Datasheet:
SGH80N60UFTU Datasheet
ECAD Model:
-
Description:
IGBT 600V 80A 195W TO3P
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):220 A
Vce(on) (Max) @ Vge, Ic:2.6V @ 15V, 40A
Power - Max:195 W
Switching Energy:570µJ (on), 590µJ (off)
Input Type:Standard
Gate Charge:175 nC
Td (on/off) @ 25°C:23ns/90ns
Test Condition:300V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
0 Remaining View Similar

In Stock

-
41

Please send RFQ , we will respond immediately.

Similar Products

Part Number SGH80N60UFTU SGF80N60UFTU   SGH40N60UFTU   SGH80N60UFDTU
Manufacturer onsemi Fairchild Semiconductor Fairchild Semiconductor onsemi
Product Status Obsolete Active Active Obsolete
IGBT Type - - - -
Voltage - Collector Emitter Breakdown (Max) 600 V 600 V 600 V 600 V
Current - Collector (Ic) (Max) 80 A 80 A 40 A 80 A
Current - Collector Pulsed (Icm) 220 A 220 A 160 A 220 A
Vce(on) (Max) @ Vge, Ic 2.6V @ 15V, 40A 2.6V @ 15V, 40A 2.6V @ 15V, 20A 2.6V @ 15V, 40A
Power - Max 195 W 110 W 160 W 195 W
Switching Energy 570µJ (on), 590µJ (off) 570µJ (on), 590µJ (off) 160µJ (on), 200µJ (off) 570µJ (on), 590µJ (off)
Input Type Standard Standard Standard Standard
Gate Charge 175 nC 175 nC 97 nC 175 nC
Td (on/off) @ 25°C 23ns/90ns 23ns/90ns 15ns/65ns 23ns/90ns
Test Condition 300V, 40A, 5Ohm, 15V 300V, 40A, 5Ohm, 15V 300V, 20A, 10Ohm, 15V 300V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr) - - - 95 ns
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case TO-3P-3, SC-65-3 TO-3P-3 Full Pack TO-3P-3, SC-65-3 TO-3P-3, SC-65-3
Supplier Device Package TO-3P TO-3PF TO-3P TO-3P
