| Part Number | SGH80N60UFDTU | SGH80N60UFTU | SGH40N60UFDTU |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A | 40 A |
| Current - Collector Pulsed (Icm) | 220 A | 220 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 40A | 2.6V @ 15V, 40A | 2.6V @ 15V, 20A |
| Power - Max | 195 W | 195 W | 160 W |
| Switching Energy | 570µJ (on), 590µJ (off) | 570µJ (on), 590µJ (off) | 160µJ (on), 200µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 175 nC | 175 nC | 97 nC |
| Td (on/off) @ 25°C | 23ns/90ns | 23ns/90ns | 15ns/65ns |
| Test Condition | 300V, 40A, 5Ohm, 15V | 300V, 40A, 5Ohm, 15V | 300V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 95 ns | - | 60 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

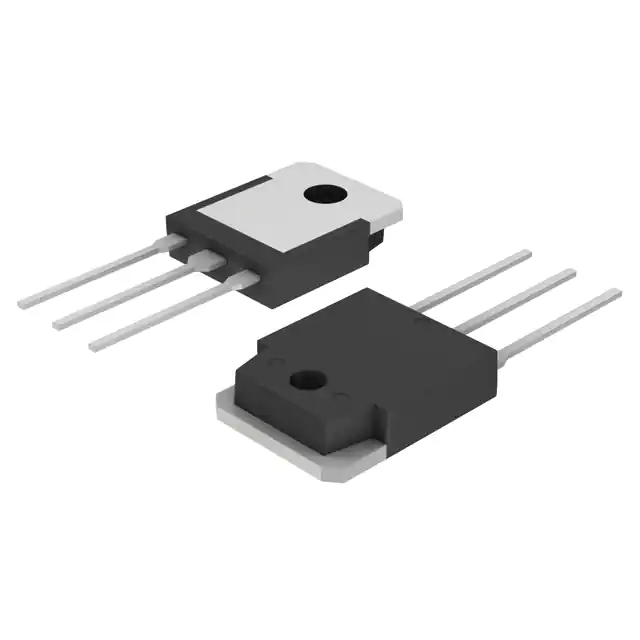

| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P | TO-3P | TO-3P |
