Please send RFQ , we will respond immediately.

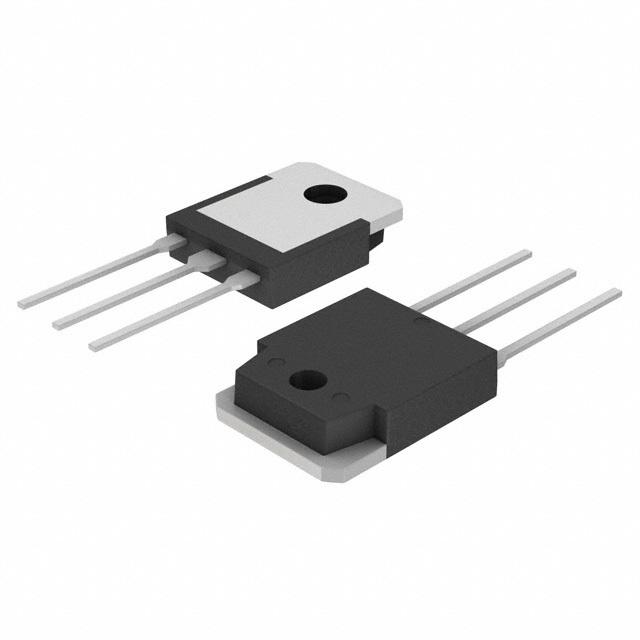

| Part Number | SGH15N60RUFDTU | SGH15N60RUFTU | SGH10N60RUFDTU |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 24 A | 24 A | 16 A |
| Current - Collector Pulsed (Icm) | 45 A | 45 A | 30 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 15A | 2.8V @ 15V, 15A | 2.8V @ 15V, 10A |
| Power - Max | 160 W | 160 W | 75 W |
| Switching Energy | 320µJ (on), 356µJ (off) | 320µJ (on), 356µJ (off) | 141µJ (on), 215µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 42 nC | 42 nC | 30 nC |
| Td (on/off) @ 25°C | 17ns/44ns | 17ns/44ns | 15ns/36ns |
| Test Condition | 300V, 15A, 13Ohm, 15V | 300V, 15A, 13Ohm, 15V | 300V, 10A, 20Ohm, 15V |
| Reverse Recovery Time (trr) | 60 ns | - | 60 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN | TO-3PN | TO-3PN |
