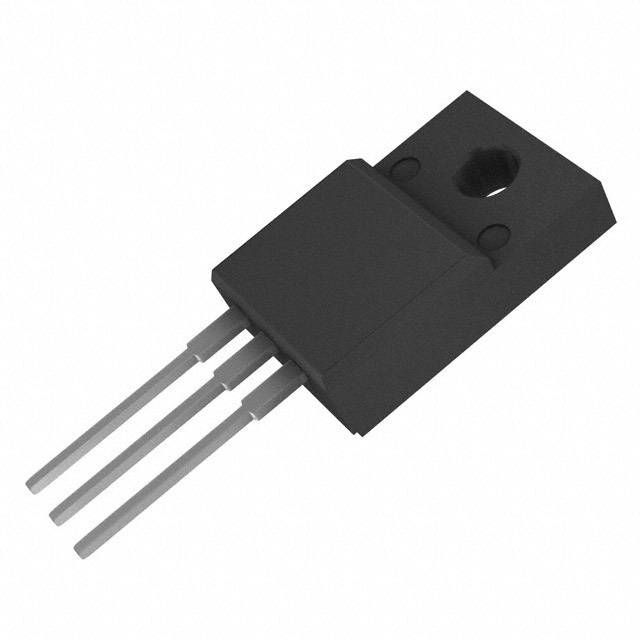

| Part Number | SGF23N60UFDTU | SGF23N60UFTU | SGS23N60UFDTU | SGP23N60UFDTU | SGH23N60UFDTU |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| IGBT Type | - | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 23 A | 23 A | 23 A | 23 A | 23 A |
| Current - Collector Pulsed (Icm) | 92 A | 92 A | 92 A | 92 A | 92 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 12A | 2.6V @ 15V, 12A | 2.6V @ 15V, 12A | 2.6V @ 15V, 12A | 2.6V @ 15V, 12A |
| Power - Max | 75 W | 75 W | 73 W | 100 W | 100 W |
| Switching Energy | 115µJ (on), 135µJ (off) | 115µJ (on), 135µJ (off) | 115µJ (on), 135µJ (off) | 115µJ (on), 135µJ (off) | 115µJ (on), 135µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 49 nC | - | 49 nC | 49 nC | 49 nC |
| Td (on/off) @ 25°C | 17ns/60ns | 17ns/60ns | 17ns/60ns | 17ns/60ns | 17ns/60ns |
| Test Condition | 300V, 12A, 23Ohm, 15V | 300V, 12A, 23Ohm, 15V | 300V, 12A, 23Ohm, 15V | 300V, 12A, 23Ohm, 15V | 300V, 12A, 23Ohm, 15V |
| Reverse Recovery Time (trr) | 60 ns | - | 60 ns | 60 ns | 60 ns |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3 Full Pack | TO-3P-3 Full Pack | TO-220-3 Full Pack | TO-220-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PF | TO-3PF | TO-220F | TO-220-3 | TO-3PN |
