onsemi-SFT1452-W - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	250 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2.4Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	4.2 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	210 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta), 26W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	IPAK/TP
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA

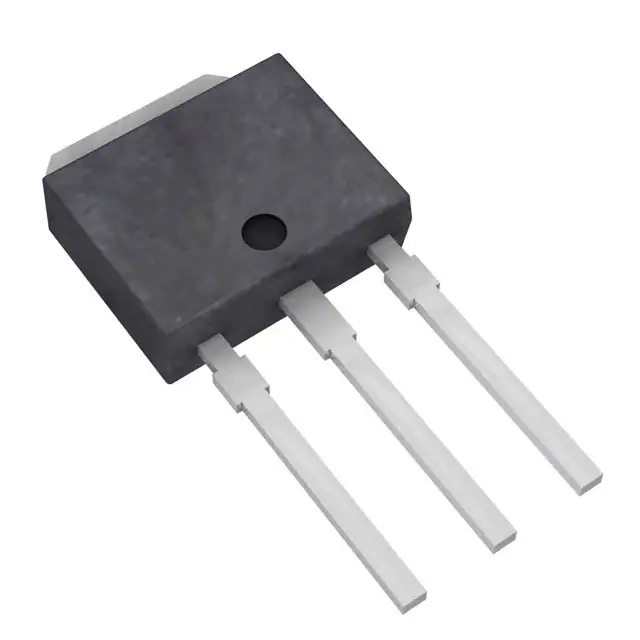

onsemi SFT1452-W
