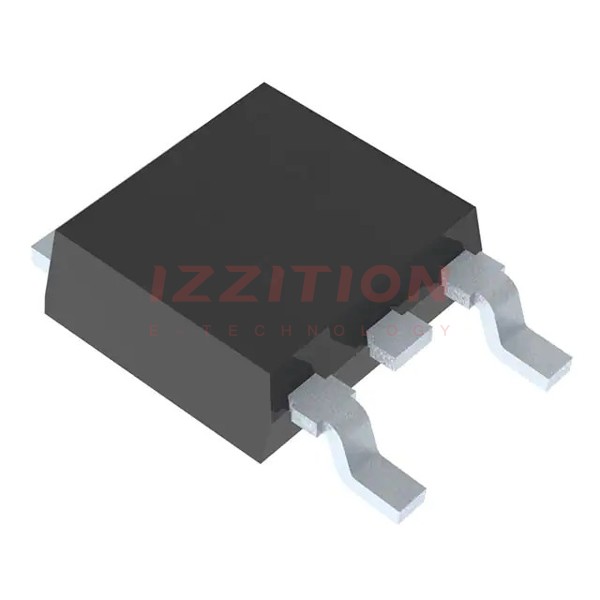

| Part Number | SFT1443-TL-H | SFT1446-TL-H | SFT1445-TL-H | SFT1443-TL-W |
|---|---|---|---|---|
| Manufacturer | onsemi | Sanyo | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 60 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) | 20A (Ta) | 17A (Ta) | 9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 225mOhm @ 3A, 10V | 51mOhm @ 10A, 10V | 111mOhm @ 8.5A, 10V | 225mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 9.8 nC @ 10 V | 16 nC @ 10 V | 19 nC @ 10 V | 9.8 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 490 pF @ 20 V | 750 pF @ 20 V | 1030 pF @ 20 V | 490 pF @ 20 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1W (Ta), 19W (Tc) | 1W (Ta), 23W (Tc) | 1W (Ta), 35W (Tc) | 1W (Ta), 19W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DPAK/TP-FA | TP-FA | TP-FA | DPAK/TP-FA |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
