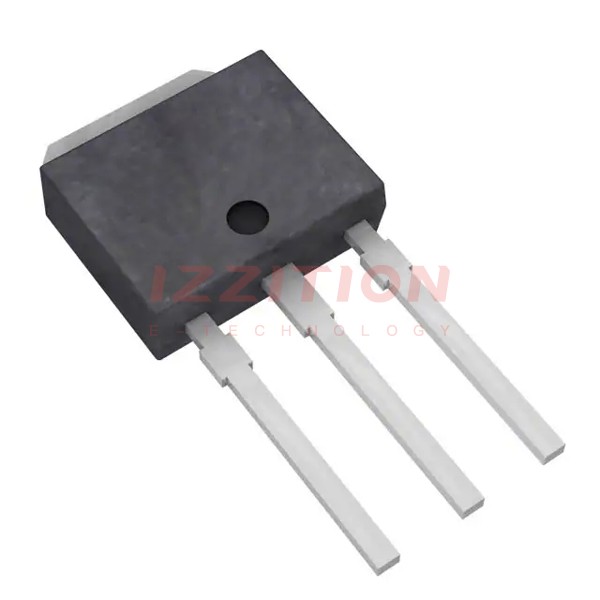

| Part Number | SFT1431-E | SFT1431-W |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 35 V | 35 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 5.5A, 10V | 25mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | - | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 17.3 nC @ 10 V | 17.3 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 960 pF @ 20 V | 960 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1W (Ta), 15W (Tc) | 1W (Ta), 15W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | IPAK/TP | IPAK/TP |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
