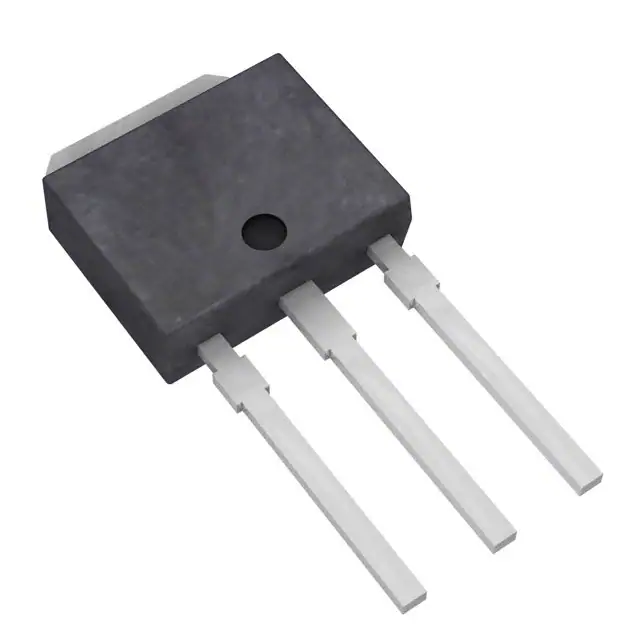

| Part Number | SFT1342-W | SFT1341-W | SFT1342-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 40 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) | 10A (Ta) | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 1.8V, 4.5V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 62mOhm @ 6A, 10V | 112mOhm @ 5A, 4.5V | 62mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | - | - | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 10 V | 8 nC @ 4.5 V | 26 nC @ 10 V |
| Vgs (Max) | ±20V | ±10V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150 pF @ 20 V | 650 pF @ 20 V | 1150 pF @ 20 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1W (Ta), 15W (Tc) | 1W (Ta), 15W (Tc) | 15W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | IPAK/TP | IPAK/TP | IPAK/TP |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
