onsemi-SCH2825-TL-E - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V, 10V
Rds On (Max) @ Id, Vgs:	180mOhm @ 800mA, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	2 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	88 pF @ 10 V
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-SCH
Package / Case:	6-SMD, Flat Leads

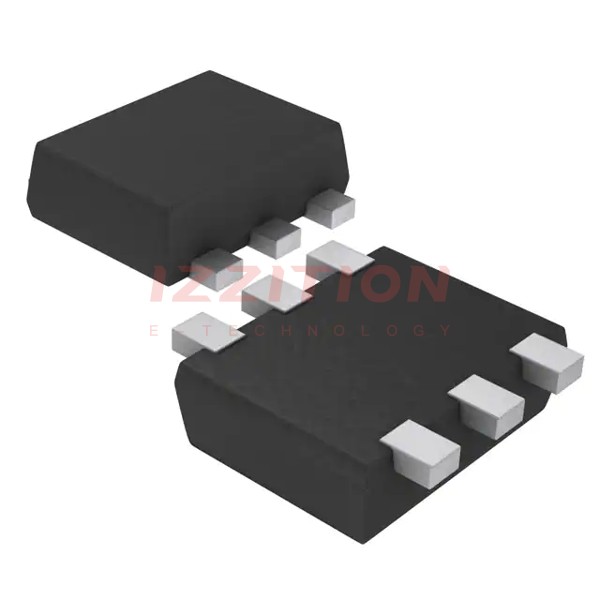

onsemi SCH2825-TL-E
