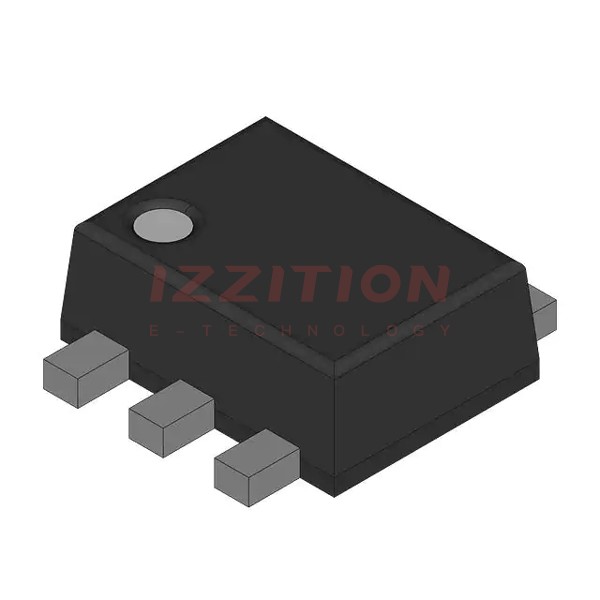

| Part Number | SCH2201-TL-E | SCH2202-TL-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Transistor Type | 2 NPN (Dual) | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 800mA | 600mA |
| Voltage - Collector Emitter Breakdown (Max) | 15V | 15V |
| Vce Saturation (Max) @ Ib, Ic | 280mV @ 20mA, 400mA | 300mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 50mA, 2V | 300 @ 10mA, 2V |
| Power - Max | 400mW | 400mW |
| Frequency - Transition | 440MHz | 330MHz |
| Operating Temperature | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | 6-SCH | 6-SCH |
