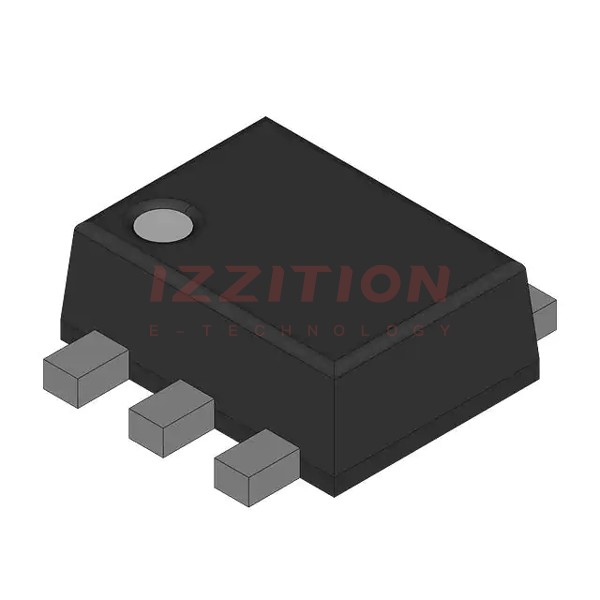

| Part Number | SCH1435-TL-H | SCH1435-TL-W | SCH1436-TL-H | SCH1439-TL-H | SCH1335-TL-H | SCH1430-TL-H | SCH1433-TL-H | SCH1434-TL-H |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Not For New Designs | Obsolete | Obsolete |
| FET Type | - | N-Channel | N-Channel | N-Channel | P-Channel | N-Channel | N-Channel | N-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 30 V | 30 V | 30 V | 12 V | 20 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | - | 3A (Ta) | 1.8A (Ta) | 3.5A (Ta) | 2.5A (Ta) | 2A (Ta) | 3.5A (Ta) | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 1.8V, 4.5V | 4V, 10V | 4V, 10V | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | - | 89mOhm @ 1.5A, 4.5V | 180mOhm @ 900mA, 10V | 72mOhm @ 1.5A, 10V | 112mOhm @ 1A, 4.5V | 125mOhm @ 1A, 4.5V | 64mOhm @ 1.5A, 4.5V | 165mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | - | - | - | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 3.5 nC @ 4.5 V | 2 nC @ 10 V | 5.6 nC @ 10 V | 3.1 nC @ 4.5 V | 1.8 nC @ 4.5 V | 2.8 nC @ 4.5 V | 1.7 nC @ 4.5 V |
| Vgs (Max) | - | ±12V | ±20V | ±20V | ±10V | ±12V | ±10V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 265 pF @ 10 V | 88 pF @ 10 V | 280 pF @ 10 V | 270 pF @ 6 V | 128 pF @ 10 V | 260 pF @ 10 V | 130 pF @ 10 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | - | 800mW (Ta) | 800mW (Ta) | 1W (Ta) | 800mW (Ta) | 800mW (Ta) | 800mW (Ta) | 800mW (Ta) |
| Operating Temperature | - | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 6-SCH | 6-SCH | 6-SCH | 6-SCH | 6-SCH | 6-SCH | 6-SCH |
| Package / Case | - | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
