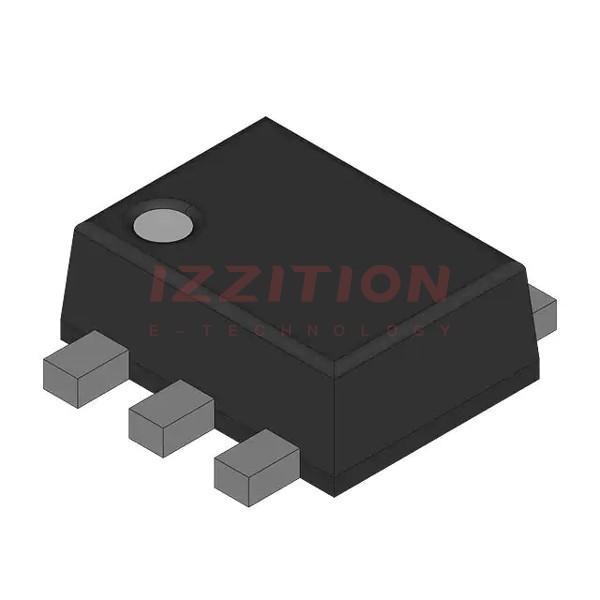

| Part Number | SCH1430-TL-W | SCH1435-TL-W | SCH1439-TL-W | SCH1433-TL-W | SCH1436-TL-W | SCH1330-TL-W | SCH1430-TL-H |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Not For New Designs |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V | 30 V | 20 V | 30 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | 3A (Ta) | 3.5A (Ta) | 3.5A (Ta) | 1.8A (Ta) | 1.5A (Ta) | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 4V, 10V | 1.8V, 4.5V | 4V, 10V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 1A, 4.5V | 89mOhm @ 1.5A, 4.5V | 72mOhm @ 1.5A, 10V | 64mOhm @ 1.5A, 4.5V | 180mOhm @ 900mA, 10V | 241mOhm @ 750mA, 4.5V | 125mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | - | 2.6V @ 1mA | 1.3V @ 1mA | 2.6V @ 1mA | 1.4V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.8 nC @ 4.5 V | 3.5 nC @ 4.5 V | 5.6 nC @ 10 V | 2.8 nC @ 4.5 V | 2 nC @ 10 V | 1.7 nC @ 4.5 V | 1.8 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V | ±20V | ±10V | ±20V | ±10V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 128 pF @ 10 V | 265 pF @ 10 V | 280 pF @ 10 V | 260 pF @ 10 V | 88 pF @ 10 V | 120 pF @ 10 V | 128 pF @ 10 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 800mW (Ta) | 800mW (Ta) | 1W (Ta) | 800mW (Ta) | 800mW (Ta) | 1W (Ta) | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-563/SCH6 | 6-SCH | SOT-563/SCH6 | SOT-563/SCH6 | SOT-563/SCH6 | SOT-563/SCH6 | 6-SCH |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
