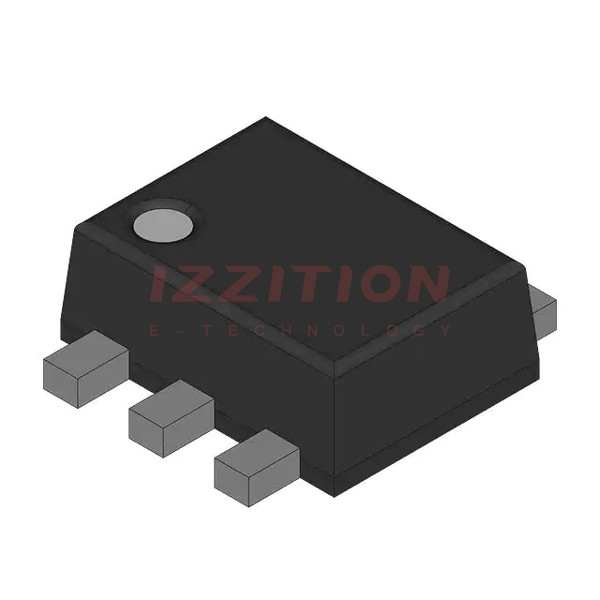

| Part Number | SCH1302-TL-E | SCH1301-TL-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | 2.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - |
| Rds On (Max) @ Id, Vgs | 165mOhm @ 1A, 4V | 120mOhm @ 1.3A, 4.5V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | 6.5 nC @ 4.5 V |
| Vgs (Max) | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 410 pF @ 10 V | 450 pF @ 6 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 800mW (Ta) | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-SCH | 6-SCH |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
