onsemi-SBT700-06RH-1E - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io) (per Diode):	70A
Voltage - Forward (Vf) (Max) @ If:	660 mV @ 30 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 mA @ 30 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Through Hole
Package / Case:	SC-94
Supplier Device Package:	TO-3PF-3

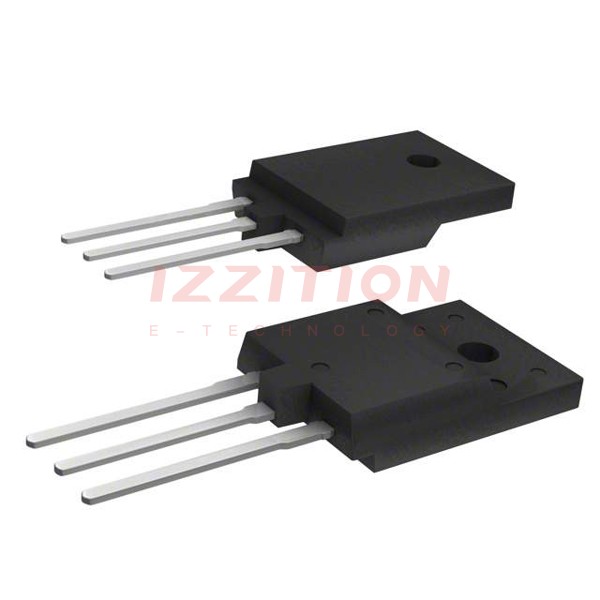

onsemi SBT700-06RH-1E
