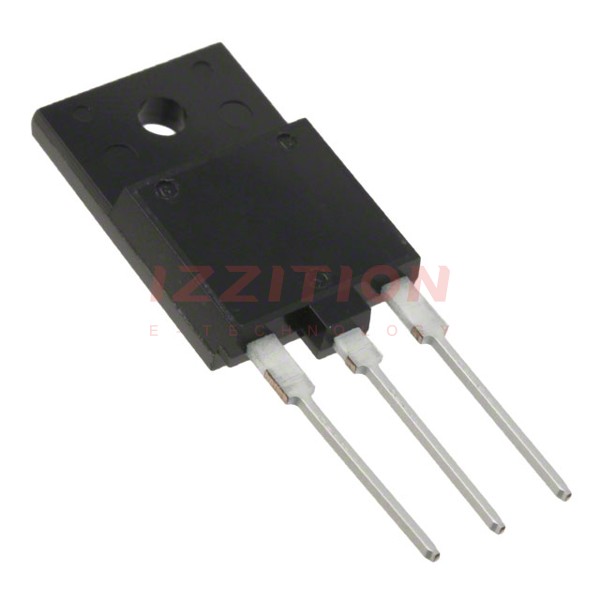

| Part Number | SBT250-04R | SBT250-04J | SBT250-04L |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) (per Diode) | 25A | 25A | 25A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 10 A | 550 mV @ 10 A | 550 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 300 µA @ 20 V | 300 µA @ 20 V | 300 µA @ 20 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3 Full Pack | TO-220-3 Full Pack | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PML | TO-220ML | TO-3PB |
