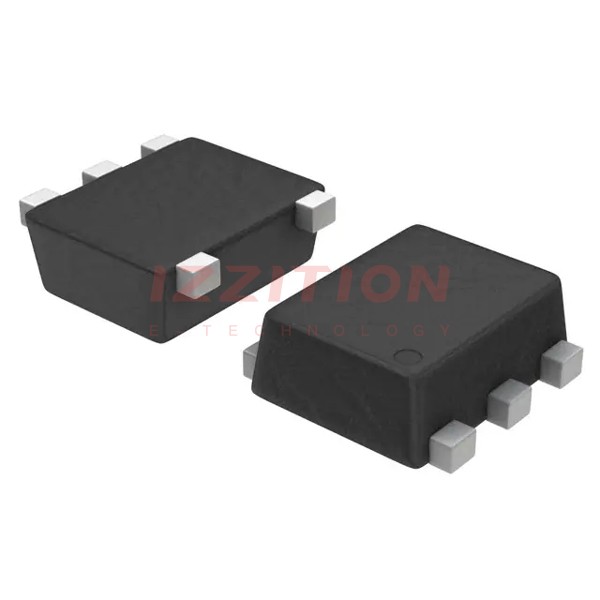

| Part Number | SBS822-S-TL-H | SBS822-S-TL-W |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Diode Configuration | 2 Independent | 2 Independent |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 20 V |
| Current - Average Rectified (Io) (per Diode) | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 1 A | 460 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns | 10 ns |
| Current - Reverse Leakage @ Vr | 110 µA @ 10 V | 110 µA @ 10 V |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead | 6-SMD (5 Leads), Flat Lead |
| Supplier Device Package | 5-MCPH | 5-MCPH |
