onsemi-SBS811-S-TL-E - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	2A
Voltage - Forward (Vf) (Max) @ If:	400 mV @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	20 ns
Current - Reverse Leakage @ Vr:	1.25 mA @ 15 V
Operating Temperature - Junction:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Flat Lead
Supplier Device Package:	8-VEC

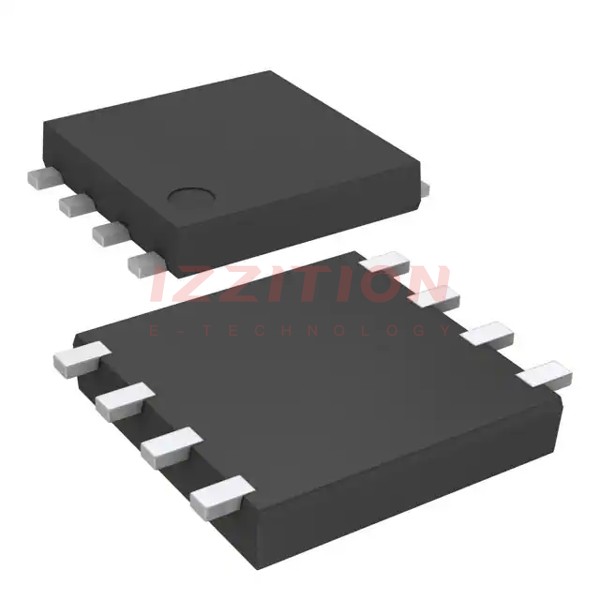

onsemi SBS811-S-TL-E
