onsemi-SBRA8160T3G-VF01 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	720 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 µA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	SMA
Operating Temperature - Junction:	-55°C ~ 150°C

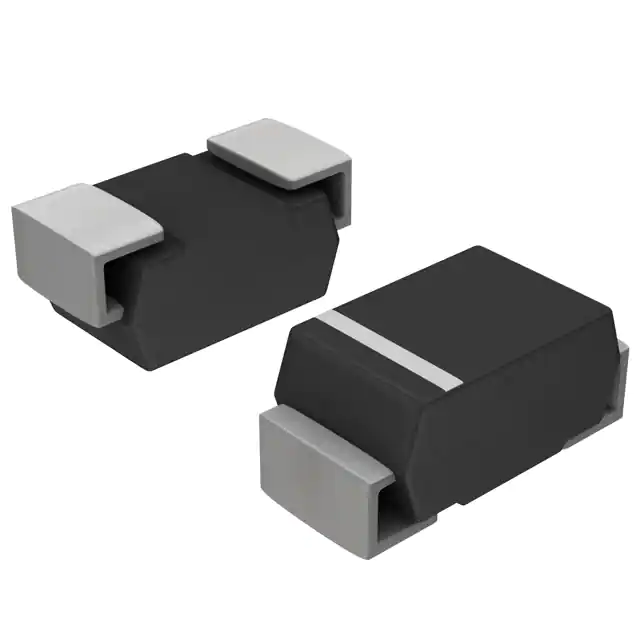

onsemi SBRA8160T3G-VF01
