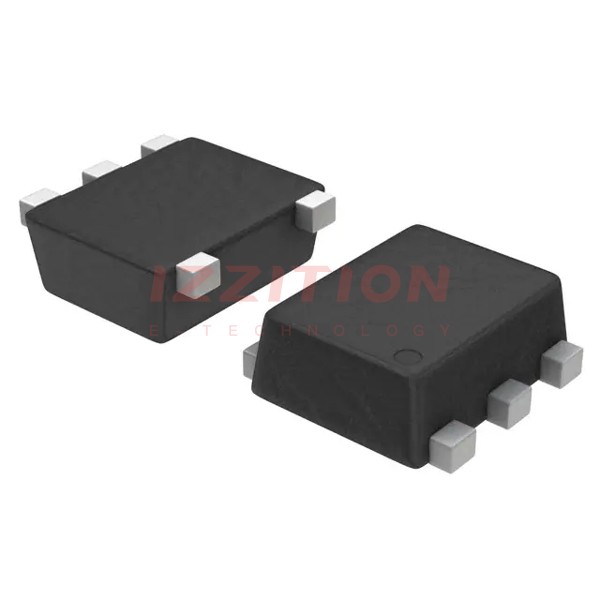

| Part Number | SBE808-TL-W | SBE805-TL-W | SBE807-TL-W |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 15 V | 30 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 1A | 500mA | 1A |
| Voltage - Forward (Vf) (Max) @ If | 540 mV @ 1 A | 550 mV @ 500 mA | 530 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns | 10 ns | 10 ns |
| Current - Reverse Leakage @ Vr | 3 µA @ 6 V | 30 µA @ 15 V | 15 µA @ 16 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | 5-MCPH | 5-CPH | 5-CPH |
