onsemi-SB80W10T-H - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	8A
Voltage - Forward (Vf) (Max) @ If:	800 mV @ 3 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 50 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Through Hole

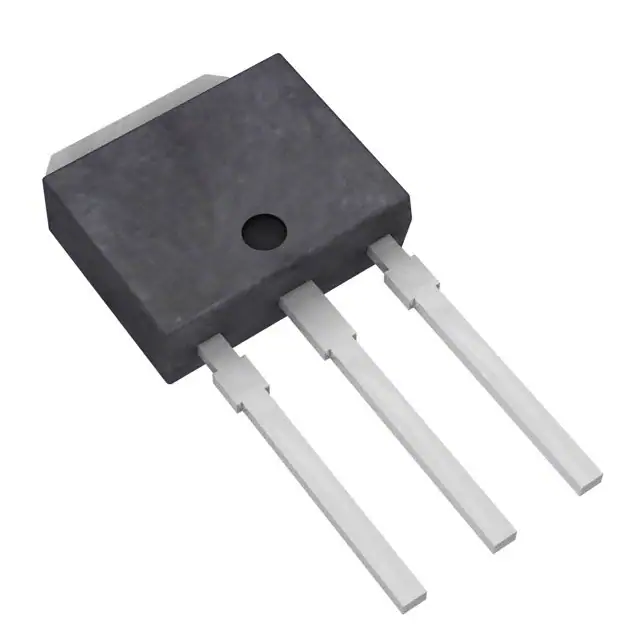

Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	TP

onsemi SB80W10T-H
