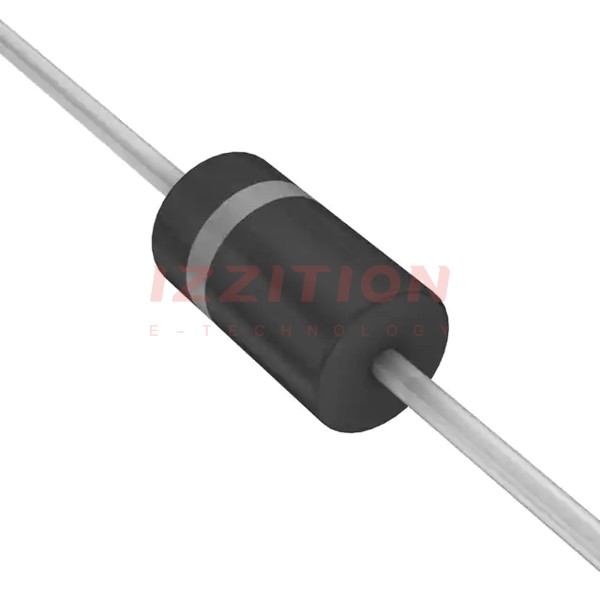

| Part Number | SB530 | SB590 | SB830 | SB540 | SB560 | SB550 | SB580 | SB520 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Diotec Semiconductor | Diotec Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 90 V | 30 V | 40 V | 60 V | 50 V | 80 V | 20 V |
| Current - Average Rectified (Io) | 5A | 5A | 8A | 5A | 5A | 5A | 5A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 5 A | 790 mV @ 5 A | 550 mV @ 8 A | 550 mV @ 5 A | 670 mV @ 5 A | 670 mV @ 5 A | 850 mV @ 5 A | 550 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 30 V | 500 µA @ 90 V | 500 µA @ 30 V | 500 µA @ 40 V | 500 µA @ 60 V | 500 µA @ 50 V | 500 µA @ 80 V | 500 µA @ 20 V |
| Capacitance @ Vr, F | 500pF @ 4V, 1MHz | - | - | 500pF @ 4V, 1MHz | - | - | 380pF @ 4V, 1MHz | 500pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AD, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AD, Axial |
| Supplier Device Package | DO-201AD | DO-201 | DO-201 | DO-201AD | DO-201 | DO-201 | DO-201AD | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C | -50°C ~ 150°C | -50°C ~ 150°C | -55°C ~ 150°C | -50°C ~ 150°C | -50°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
