onsemi-SB11-04HP-TR-E - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	1.1A
Voltage - Forward (Vf) (Max) @ If:	550 mV @ 1.1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 mA @ 40 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	SMD
Operating Temperature - Junction:	125°C (Max)

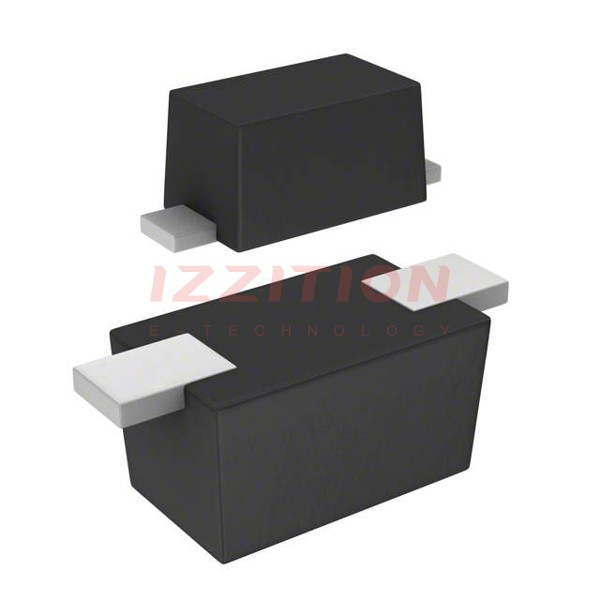

onsemi SB11-04HP-TR-E
