Please send RFQ , we will respond immediately.

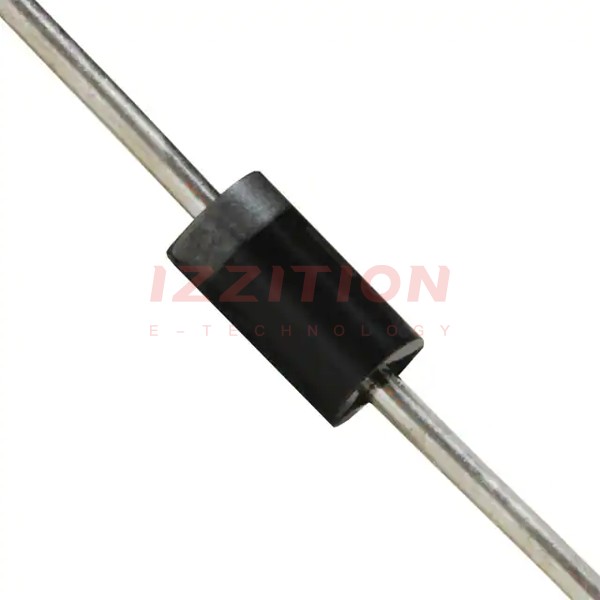

| Part Number | SB10-03A2-BT | SB10-03A3-BT | SB10-05A2-BT |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 50 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A | 550 mV @ 1 A | 580 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 1 mA @ 30 V | 1 mA @ 30 V | 1 mA @ 50 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 |
| Operating Temperature - Junction | 150°C (Max) | 125°C (Max) | 125°C (Max) |
