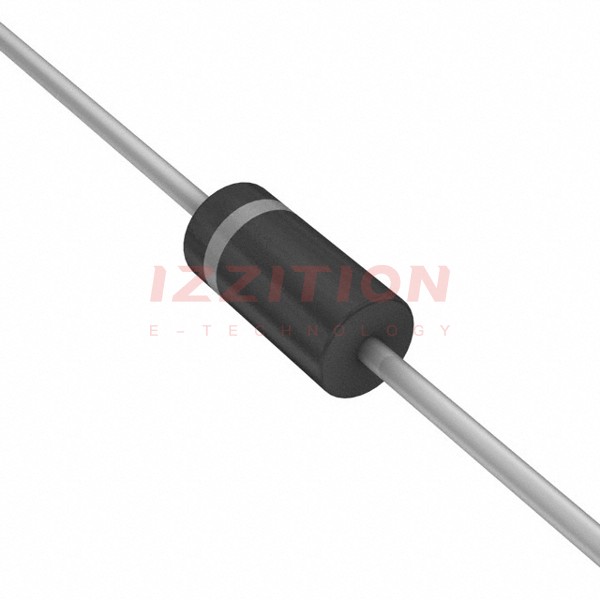

| Part Number | SA13AG | SA13AH | SA15AG | SA12AG | SA13A |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Taiwan Semiconductor Corporation | Littelfuse Inc. | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 13V | 13V | 15V | 12V | 13V |
| Voltage - Breakdown (Min) | 14.4V | 14.4V | 16.7V | 13.3V | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 21.5V | 21.5V | 24.4V | 19.9V | 21.5V |
| Current - Peak Pulse (10/1000µs) | 23.2A | 24A | 20.6A | 25.1A | 23.7A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | Automotive | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | Axial | DO-204AC (DO-15) | DO-204AC (DO-15) | Axial | DO-204AC (DO-15) |
