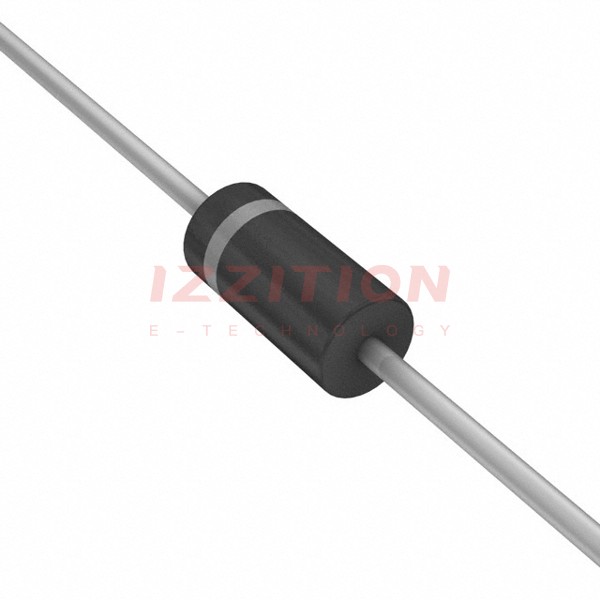

| Part Number | SA120AG | SA12AG | SA120AH | SA10AG | SA120A |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Taiwan Semiconductor Corporation | onsemi | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 120V | 12V | 120V | 10V | 120V |
| Voltage - Breakdown (Min) | 133V | 13.3V | 133V | 11.1V | 133V |
| Voltage - Clamping (Max) @ Ipp | 193V | 19.9V | 193V | 17V | 193V |
| Current - Peak Pulse (10/1000µs) | 2.5A | 25.1A | 2.7A | 29.4A | 2.6A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | Axial | Axial | DO-204AC (DO-15) | Axial | DO-204AC (DO-15) |
