Please send RFQ , we will respond immediately.

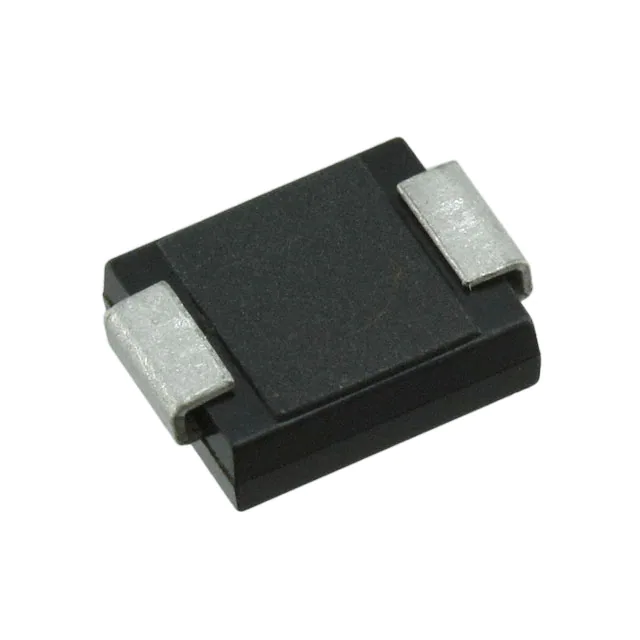

| Part Number | S3D | S3G | S3DB | S3A | S3B |
|---|---|---|---|---|---|
| Manufacturer | onsemi | SMC Diode Solutions | SMC Diode Solutions | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 400 V | 200 V | 50 V | 100 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 3 A | 1.1 V @ 3 A | 1.2 V @ 3 A | 1.2 V @ 3 A | 1.2 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2.5 µs | - | 2.5 µs | 2.5 µs | 2.5 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 200 V | 5 µA @ 50 V | 5 µA @ 100 V |
| Capacitance @ Vr, F | 60pF @ 4V, 1MHz | 60pF @ 4V, 1MHz | 60pF @ 4V, 1MHz | 60pF @ 4V, 1MHz | 60pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AA, SMB | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) | SMC (DO-214AB) | SMB (DO-214AA) | SMC (DO-214AB) | SMC (DO-214AB) |
| Operating Temperature - Junction | -55°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
