onsemi-S2SA1774G - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	PNP
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 5mA, 50mA
Current - Collector Cutoff (Max):	500pA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 1mA, 6V
Power - Max:	150 mW
Frequency - Transition:	140MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

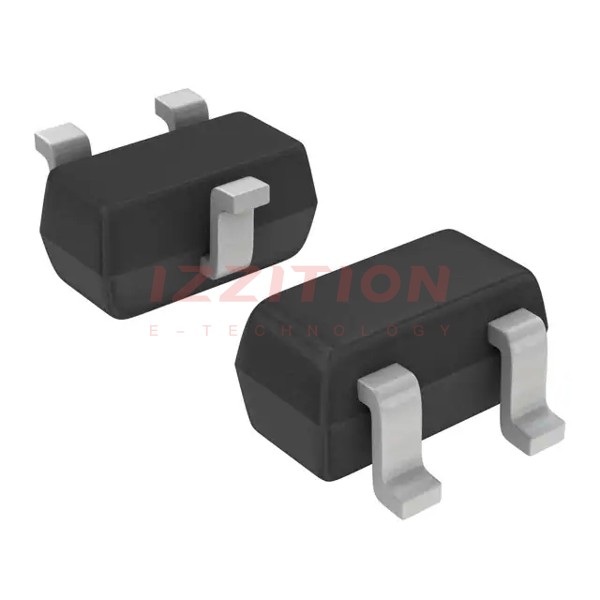

Package / Case:	SC-75, SOT-416
Supplier Device Package:	SC-75, SOT-416

onsemi S2SA1774G
