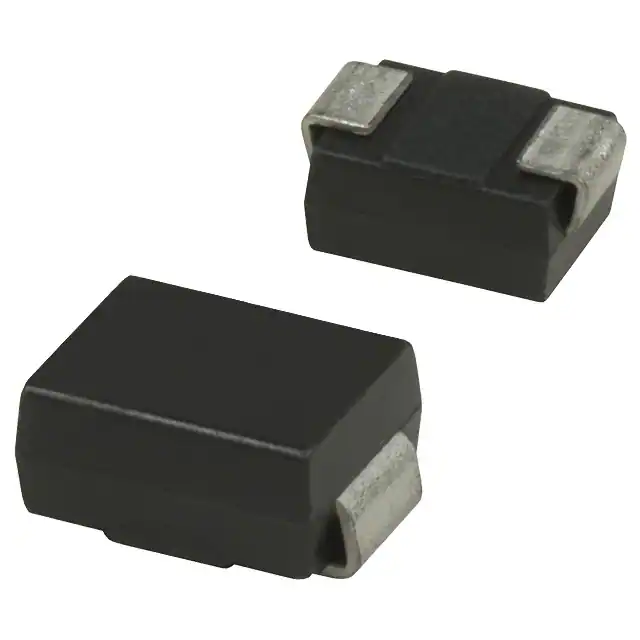

| Part Number | S2B | S2J | S2G | S2D | S2BA | S2BH | S2A |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | SMC Diode Solutions | onsemi | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 600 V | 400 V | 200 V | 100 V | 100 V | 50 V |
| Current - Average Rectified (Io) | 2A | 2A | 2A | 2A | 1.5A | 2A (DC) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 2 A | 1.15 V @ 2 A | 1.1 V @ 2 A | 1.15 V @ 2 A | 1.1 V @ 1.5 A | 1.15 V @ 2 A | 1.15 V @ 2 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 2 µs | 2.5 µs | 2 µs | 1.5 µs | 1.5 µs | 2 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V | 1 µA @ 600 V | 5 µA @ 400 V | 1 µA @ 200 V | 5 µA @ 100 V | 1 µA @ 100 V | 1 µA @ 50 V |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) | DO-214AA (SMB) | SMB (DO-214AA) | DO-214AA (SMB) | DO-214AC (SMA) | DO-214AA (SMB) | DO-214AA (SMB) |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C |
