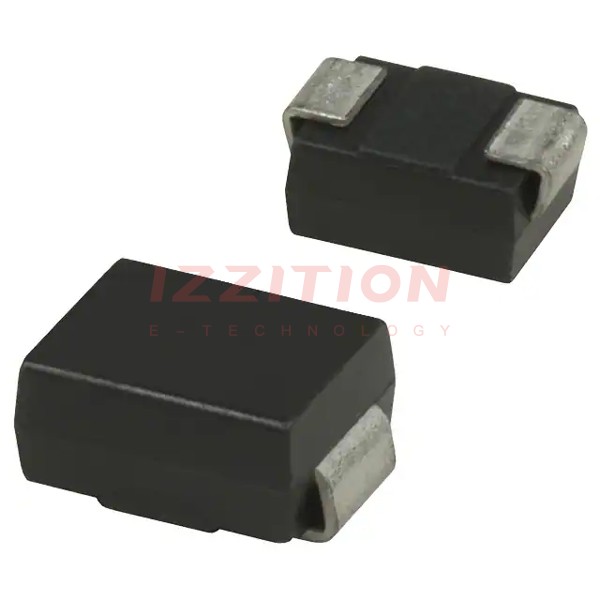

onsemi-S210 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	2A
Voltage - Forward (Vf) (Max) @ If:	850 mV @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	400 µA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB
Supplier Device Package:	DO-214AA (SMB)
Operating Temperature - Junction:	-65°C ~ 125°C

onsemi S210
