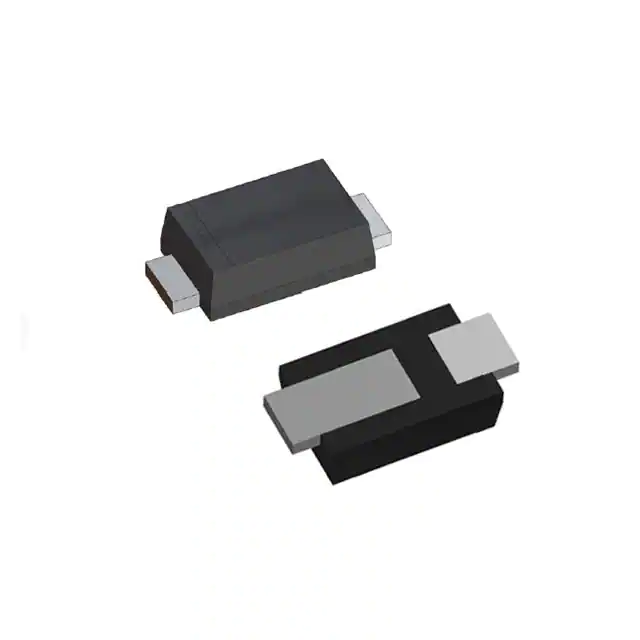

| Part Number | S1JFP | S1JFS | S1KFP | S1JFL |
|---|---|---|---|---|
| Manufacturer | onsemi | Taiwan Semiconductor Corporation | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 800 V | 600 V |
| Current - Average Rectified (Io) | 1.2A | 1A | 1.2A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1.2 A | 1.1 V @ 1 A | 1.3 V @ 1.2 A | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs | - | 1.5 µs | 2 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 1 µA @ 600 V | 5 µA @ 800 V | 1 µA @ 600 V |
| Capacitance @ Vr, F | 18pF @ 0V, 1MHz | 9pF @ 4V, 1MHz | 18pF @ 0V, 1MHz | 4pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123H | SOD-128 | SOD-123H | SOD-123F |
| Supplier Device Package | SOD-123HE | SOD-128 | SOD-123HE | SOD-123F |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -50°C ~ 150°C |
