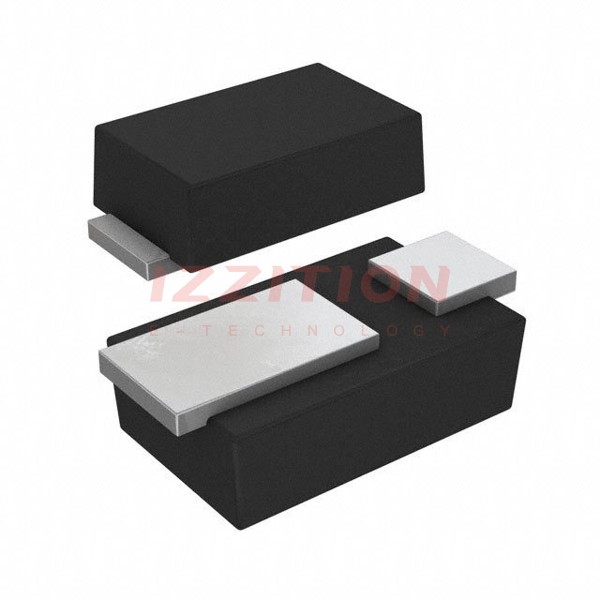

| Part Number | S1GHE | S1JHE | S1GH |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 400 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 782 ns | 782 ns | 1.5 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V | 1 µA @ 600 V | 1 µA @ 400 V |
| Capacitance @ Vr, F | 3pF @ 4V, 1MHz | 3pF @ 4V, 1MHz | 12pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | DO-214AC, SMA |
| Supplier Device Package | SOD-323HE | SOD-323HE | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
