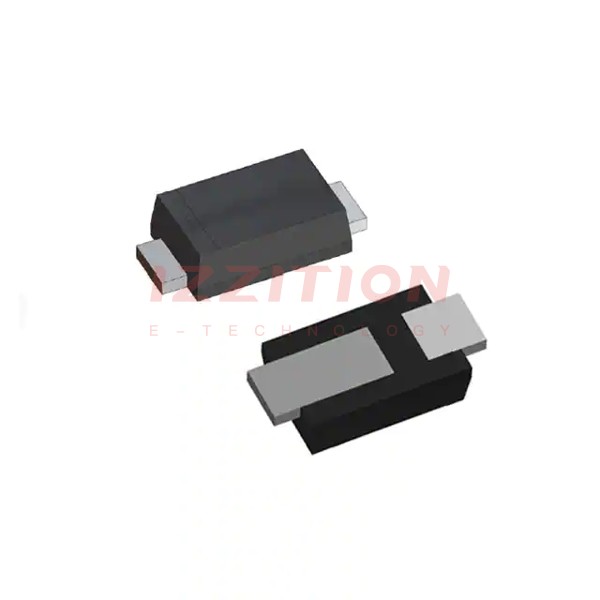

| Part Number | S110FP | S115FP | S110FA |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 150 V | 100 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 1 A | 900 mV @ 1 A | 800 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V | 50 µA @ 150 V | 50 µA @ 100 V |
| Capacitance @ Vr, F | 32pF @ 4V, 1MHz | 32pF @ 4V, 1MHz | 55pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123H | SOD-123H | SOD-123W |
| Supplier Device Package | SOD-123HE | SOD-123HE | SOD-123FA |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
