onsemi-S100 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	850 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 µA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	DO-214AC (SMA)
Operating Temperature - Junction:	-65°C ~ 125°C

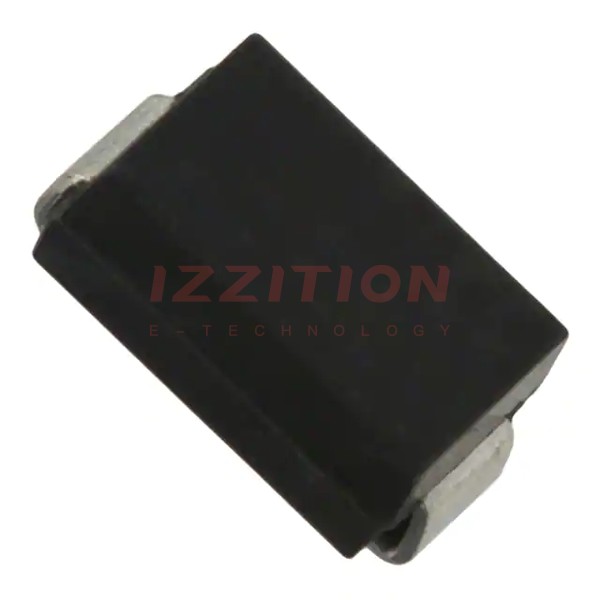

onsemi S100
