onsemi-RURG80100 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io):	80A
Voltage - Forward (Vf) (Max) @ If:	1.9 V @ 80 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	200 ns
Current - Reverse Leakage @ Vr:	250 µA @ 1000 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247-2
Operating Temperature - Junction:	-65°C ~ 175°C

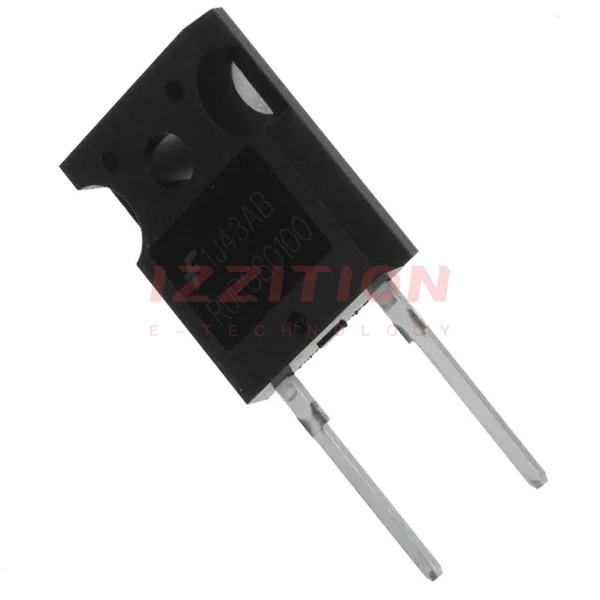

onsemi RURG80100
