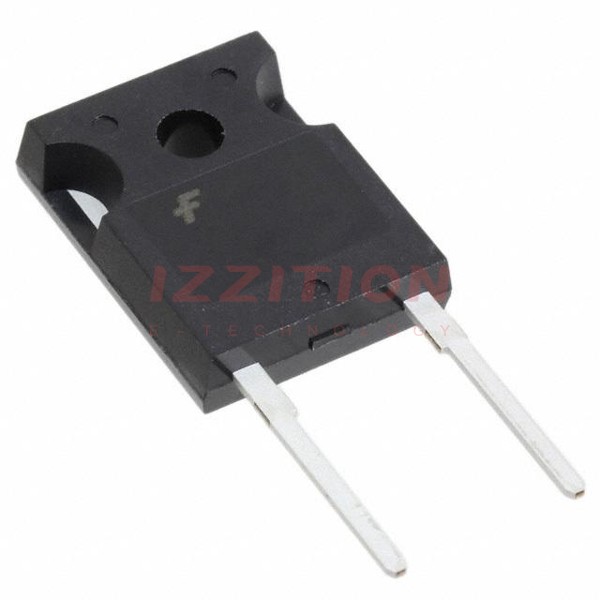

| Part Number | RURG5060-F085 | RURG8060-F085 | RURG3060-F085 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 50A | 80A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 50 A | 1.6 V @ 80 A | 1.5 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 90 ns | 90 ns | 80 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V | 250 µA @ 600 V | 250 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247-2 | TO-247-2 | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
