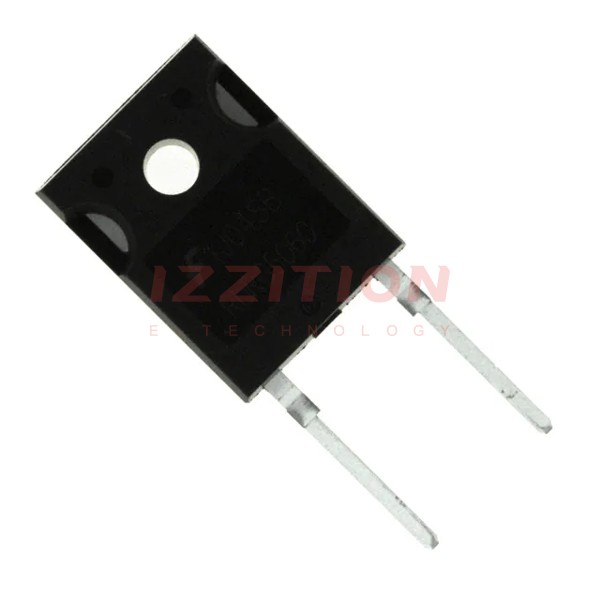

| Part Number | RURG5060 | RURG8060 | RURU5060 | RURG3060 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Harris Corporation | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete |
| Diode Type | Standard | Standard | Avalanche | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 50A | 80A | 50A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 50 A | 1.6 V @ 80 A | 1.6 V @ 50 A | 1.5 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns | 85 ns | 75 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V | 250 µA @ 600 V | 500 µA @ 600 V | 250 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Chassis Mount | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-218-1 | TO-247-2 |
| Supplier Device Package | TO-247-2 | TO-247-2 | TO-218 | TO-247-2 |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
